Fire Extinguisher Position: Regulations & Best Practices

Why Fire Extinguisher Placement Matters

What is the proper position of a fire extinguisher? This question directly impacts building safety outcomes. According to the Fire Industry Association, portable fire extinguishers suppressed 93% of fires in 2021, up from 80% in 2003. In the United States alone, nearly 2 million fires are handled entirely by fire extinguishers annually.

These statistics reveal a critical truth: fire extinguishers only work when people can reach them quickly. Poor positioning renders even the best equipment useless during emergencies.

The Time Factor in Fire Response

Fire incidents create time-sensitive, adrenaline-inducing situations. Every second counts when flames spread. Proper positioning reduces retrieval time and increases the likelihood that occupants will attempt to control small fires before they escalate.

When extinguishers remain hidden, blocked or mounted at incorrect heights, people waste precious minutes searching. This delay often transforms manageable incidents into catastrophic property damage or serious injuries.

The positioning challenge becomes particularly acute in modern buildings. Glass partitions, open-plan layouts and design-conscious environments complicate traditional wall-mounting approaches. What is the proper position of a fire extinguisher in these contexts requires balancing regulatory compliance with architectural aesthetics.

Height Requirements for Proper Positioning

Fire extinguisher mounting height requirements follow ergonomic principles ensuring accessibility for most adults. Regulations specify two critical measurements: ground clearance and carrying handle height.

Standard Height Specifications

Fire extinguishers must be mounted with:

• Minimum 4 inches (10cm) ground clearance: Prevents accidental displacement and protects against floor-level moisture or debris
• Carrying handle between 3.5 and 5 feet (1.07m to 1.52m) from ground: Positions equipment at comfortable reach height for average adults

European guidelines recommend a narrower range of 0.80m to 1.20m for handle positioning according to German Arbeitsschutzausschuss regulations. This specification accommodates users of varying heights while maintaining eye-level visibility in corridors.

Height Variations by Extinguisher Weight

Heavier extinguishers often require lower mounting positions for easier removal:

The mounting height directly affects visibility and accessibility. Too high creates removal difficulty for shorter individuals. Too low reduces visibility and increases collision risk in busy environments.

Verification Method

Test your installation height by having multiple people of different statures approach and remove the extinguisher. The action should feel natural and require minimal physical strain. Remember that emergency situations involve stress—what feels slightly awkward during testing becomes genuinely difficult under pressure.

Maximum Travel Distance Regulations

Travel distance requirements ensure that extinguishers remain within reasonable reach throughout a building. NFPA 10 standards establish "maximum travel distance to extinguisher" specifications based on fire classification.

Distance Requirements by Class

• Class A and D extinguishers: Maximum 75 feet (23 meters) travel distance
• Class B and K extinguishers: Maximum 30 feet (9 meters) travel distance
• Class C extinguishers: No standalone C rating exists; follow associated Class A or B requirements

German regulations (ASR A2.2) specify different standards:

• Normal fire hazard environments: 20 meters maximum walking distance
• Increased fire hazard areas: 10 meters maximum walking distance

Calculating Travel Distance Correctly

What is the proper position of a fire extinguisher requires realistic path assessment. Measure along actual walkable routes, not straight lines through walls or obstacles. Consider:

• Corridor turns and corners
• Doorways requiring opening
• Furniture arrangements creating natural pathways
• Restricted access areas requiring detours

For example, an extinguisher positioned 15 meters straight-line distance might actually require 25 meters of travel when accounting for corridor layout and door locations. This distinction determines compliance.

Practical Application

In a typical office building corridor, position extinguishers at intersection points serving multiple directions. A single unit at a T-junction effectively covers three corridor branches within the 20-meter normal hazard requirement.

Commercial kitchens require denser coverage due to Class K requirements. Position extinguishers near cooking equipment, exit doors and ventilation hood areas to maintain the 9-meter (30-foot) maximum distance.

Visibility Standards and Signage

Fire extinguisher visibility directly impacts response time during emergencies. Clear visual identification helps occupants locate equipment quickly under stressful conditions.

Signage Requirements

Protective storage solutions for safety equipment must include proper signage. European standards mandate the "F001" pictogram (ISO 7010) displayed above or adjacent to extinguishers. This red square with white fire extinguisher symbol provides universal recognition.

Germany's ASR A1.3 regulation specifies:

• Permanent mounting of signage
• Clear visibility from multiple approach angles
• Additional directional arrows in confusing building layouts

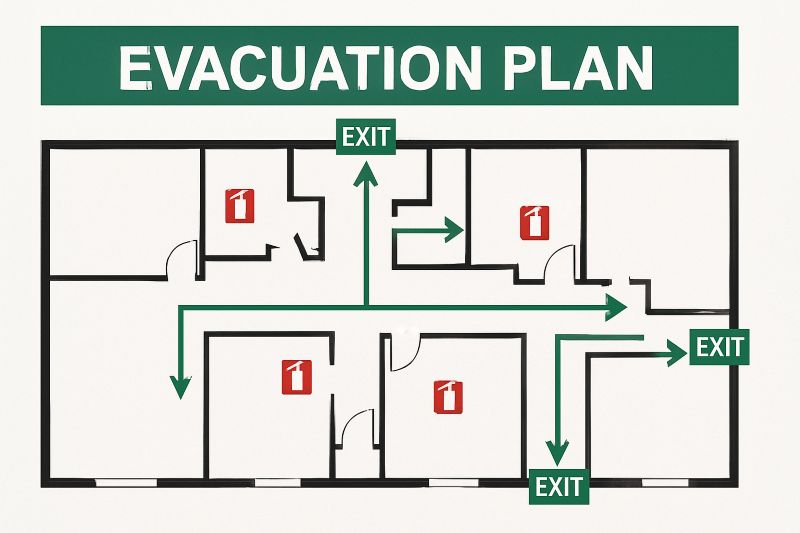

• Inclusion in evacuation and rescue plans

Signage Options

• Standard red signage: Traditional approach using reflective or non-reflective materials
• Photoluminescent signage: Glow-in-dark materials maintaining visibility during power failures or smoke-filled conditions

Photoluminescent options exceed basic requirements, offering enhanced safety during electrical failures common in fire incidents.

Natural Visibility Factors

Beyond signage, consider natural visibility factors:

• Mount at eye level (1.00m - 1.20m handle height achieves this)
• Avoid recessed locations or corners with limited sight lines
• Ensure adequate lighting in the mounting area
• Use contrasting wall colors to highlight red extinguisher bodies

In design-conscious environments, visibility sometimes conflicts with aesthetic goals. This tension creates demand for protective enclosures enhancing fire extinguisher placement that maintain visibility while improving interior appearance.

Accessibility Rules for Emergency Access

Accessibility requirements ensure that extinguishers remain immediately usable without obstacles or complicated removal procedures.

Clear Zone Requirements

Maintain a clear zone around fire extinguisher locations:

• Minimum 1 meter approach distance: No furniture, equipment or stored materials within 1 meter
• 180-degree approach capability: Users should access from multiple angles, not just head-on
• Removal in under 3 seconds: Mounting systems allowing quick, intuitive extraction

These requirements prevent common accessibility problems like storage boxes stacked in front of extinguishers or furniture arrangements blocking access paths.

Mounting Security vs. Accessibility Balance

Wall brackets and cabinets must balance two competing needs:

• Secure mounting preventing accidental displacement or theft
• Quick removal allowing immediate deployment during emergencies

Traditional wall brackets achieve this through gravity-based retention. The extinguisher's weight holds it in place, but upward lifting immediately releases it. Cabinet solutions use magnetic closures or simple mechanical latches operable without keys.

Testing Accessibility

Conduct periodic accessibility tests:

1. Approach the extinguisher from different directions
2. Remove it while timing the action
3. Verify no fumbling with complicated latches or locks
4. Confirm one-person operation without tools

Staff members unfamiliar with the specific installation should participate in testing. If they struggle during calm testing conditions, expect worse performance during actual emergencies.

Special Accessibility Considerations

High-traffic areas: Collision protection becomes essential. Traditional wall mounting exposes extinguishers to cart impacts, wheelchair collisions and moving equipment. Protective cabinets or floor stands with roll bars prevent damage while maintaining accessibility.

Outdoor or semi-outdoor locations: Weather protection requires enclosed cabinets. These installations must remain accessible without keys. Magnetic or simple latch systems satisfy both weather protection and accessibility requirements.

Public access buildings: Vandalism risks increase in shopping centers, transport hubs and entertainment venues. Security features like tamper seals or protective enclosures deter interference while preserving emergency accessibility.

Strategic Location Selection by Building Type

What is the proper position of a fire extinguisher varies by building characteristics, occupancy type and specific hazard profiles.

Universal Priority Locations

Regardless of building type, prioritize these locations:

• Exit routes: Corridors, hallways and passages leading to building exits receive highest priority. Position extinguishers along evacuation paths enabling intervention while maintaining escape route access.
• Stairwell entrances: Multi-story buildings require coverage at each floor's stairwell access. Vertical fire spread patterns make these positions critical for containing fires before they reach upper or lower levels.
• Building entrances: Main and secondary entrances provide natural positioning points. Arriving occupants and departing evacuees can easily locate and deploy equipment.
• Route intersections: Corridor crossings and T-junctions serve multiple direction paths, maximizing coverage efficiency.

Office and Commercial Buildings

Office environments present unique positioning challenges:

According to OSHA fire safety guidelines, offices should maintain at least one Class A extinguisher per 3,000 square feet of floor space, with maximum 75-foot travel distances observed throughout.

Industrial and Manufacturing Facilities

Industrial settings require hazard-specific positioning:

• Near machinery with flammable hydraulic fluids: Class B extinguishers positioned within 30 feet of potential ignition sources
• Electrical panels and control stations: Class C (CO2 or dry chemical) extinguishers mounted adjacent to electrical distribution equipment
• Welding and hot work areas: Multi-purpose ABC extinguishers stationed at each designated hot work location
• Loading docks: Position near dock doors to address vehicle fires or fuel spill ignition

Hospitality and Food Service

Restaurants, hotels and catering facilities require specialized coverage:

• Commercial kitchens: Class K extinguishers mandatory within 9 meters of all cooking equipment. Position multiple units in large kitchens to avoid exceeding travel distance
• Dining areas: Class A extinguishers covering general combustibles with typical 23-meter maximum travel distance
• Guest corridors (hotels): Position at corridor intersections and near elevator lobbies
• Banquet halls: Coverage based on room size with additional units near temporary cooking stations or buffet warming equipment

Retail and Public Buildings

Shopping centers, museums and public facilities face unique challenges:

• High-traffic corridors: Protection against collision damage becomes priority. Floor stands or protective cabinets prevent cart and wheelchair impacts
• Display areas: Balance fire safety with merchandise presentation. Design-integrated solutions maintain aesthetic standards
• Stockrooms: Dense combustible storage requires reduced travel distances (15 meters recommended)
• Public restrooms: Position nearby but not inside to avoid moisture exposure and accessibility issues during occupancy

Educational Institutions

Schools, universities and training centers require thoughtful positioning:

• Classroom corridors: Standard 20-meter maximum travel distance with extinguishers positioned near classroom clusters
• Laboratories: Class B and C extinguishers based on chemical and electrical hazards; position outside lab entrances rather than inside
• Auditoriums: Multiple extinguishers covering both audience areas and stage/technical zones
• Gymnasiums: Minimum two extinguishers in large spaces, positioned near equipment storage and exit doors

Healthcare Facilities

Hospitals, clinics and care homes face stringent requirements:

• Patient corridors: More frequent positioning (15-meter intervals) due to mobility-impaired occupants
• Operating rooms: Specialized extinguishers positioned outside OR suites to avoid sterile field contamination
• Mechanical rooms: Boiler rooms, generator rooms and electrical closets require dedicated coverage
• Oxygen storage: Special protocols for Class C extinguishers near compressed gas storage

Protection and Mounting Solutions

Physical mounting systems must satisfy multiple requirements: regulatory compliance, physical security, accessibility and environmental protection.

Standard Wall Bracket Systems

Traditional wall brackets remain the most common mounting solution:

Bracket Characteristics

• Universal compatibility: Most extinguishers feature metal hanging tabs allowing use with various bracket types
• Weight capacity: Match bracket size to extinguisher weight (2kg units differ from 12kg models)
• Secure wall attachment: Heavy-duty anchors essential, especially for solid wall construction

Installation Best Practices

1. Verify wall structural integrity before mounting
2. Use appropriate anchors (heavy-duty toggle bolts for drywall, concrete anchors for masonry)
3. Test bracket load capacity after installation by applying downward pressure
4. Ensure extinguisher sits level and stable in bracket

Protective Cabinet Solutions

Cabinet enclosures provide multiple benefits beyond simple mounting:

Fire Extinguisher Cabinet Selection Criteria

• Door mechanism: Magnetic, latch or breakaway glass based on security needs
• Material: Steel for durability, aluminum for corrosion resistance, plastic for indoor budget applications
• Finish: Powder coat, stainless steel or custom colors matching interior design
• Viewing panel: Clear acrylic or glass maintaining visual confirmation of equipment presence

Free-Standing fire Extinguisher Stand Systems

Free-standing solutions serve specific installation challenges:

• Glass partition environments: Modern offices with extensive glazing offer limited wall-mounting opportunities. Floor stands provide stable positioning without wall penetration
• Temporary installations: Construction sites, event venues and temporary facilities benefit from portable positioning
• Rented spaces: Tenant improvements avoiding permanent wall modifications use floor stands maintaining lease agreement compliance

Floor Stand Design Features

• Weighted bases: Prevent tipping during accidental contact
• Protective bars: Roll bar designs shield extinguisher body from cart and vehicle impacts
• Height adjustment: Some models accommodate different extinguisher sizes while maintaining proper handle height
• Signage integration: Built-in sign holders maintaining visibility standards

Specialized Mounting Solutions

Vehicle Mounting

Mobile equipment, trucks and fleet vehicles require vibration-resistant brackets with positive locking mechanisms preventing displacement during transport.

Marine Applications

Boats and maritime facilities use corrosion-resistant stainless steel or composite brackets with additional securing straps preventing loss overboard.

High-Vibration Environments

Industrial facilities with heavy machinery employ spring-loaded retention brackets or strap-secured mounting preventing vibration-induced displacement.

Design Integration with Fire Safety Furniture

Modern architecture increasingly demands that safety equipment integrate aesthetically with interior design. Protective storage solutions for safety equipment have evolved beyond basic cabinets to sophisticated furniture pieces.

The Design-Safety Balance Challenge

Traditional bright red extinguishers on exposed wall brackets conflict with carefully planned interior aesthetics. Designers face competing pressures:

• Regulatory requirements mandating visibility and accessibility
• Client expectations for cohesive, premium interior environments
• Brand standards prohibiting visual disruption from safety equipment
• Budget constraints limiting custom solutions

This tension has created demand for fire safety furniture—purpose-designed pieces concealing extinguishers while maintaining full regulatory compliance.

Fire Safety Furniture Categories

Protective Enclosure Cabinets

These solutions fully enclose extinguishers within furniture-grade cabinetry:

• Materials: Wood veneer, laminate, powder-coated metal or combinations matching existing interior finishes
• Door systems: Magnetic closures allowing push-to-open access without handles or visible hardware
• Signage integration: Discrete F001 pictograms or illuminated indicators maintaining compliance without visual dominance
• Customization: Color matching, material coordination and dimensional adjustment fitting specific architectural requirements

Fire Extinguisher Cover Solutions

These designs balance concealment with immediate visibility:

• Decorative screens: Perforated panels or slatted designs partially obscuring equipment while maintaining recognizability
• Branded enclosures: Corporate logo integration or custom graphics transforming safety equipment into brand expression
• Architectural integration: Column wraps, corner treatments or millwork integration making extinguishers part of architectural vocabulary

Designer Floor Stands

Elevated free-standing solutions offering both protection and aesthetic contribution:

• Sculptural designs: Contemporary forms treating safety equipment as design objects rather than utilitarian necessities
• Material sophistication: Brushed stainless steel, powder-coated aluminum, wood accents or composite materials exceeding basic painted steel
• Multi-function integration: Combined extinguisher stands with wayfinding signage, plant holders or other functional elements

Application Scenarios for Design-Integrated Solutions

Corporate Lobbies and Reception Areas

First impression spaces demand highest aesthetic standards. Custom cabinetry matching reception desk materials conceals extinguishers while maintaining required positioning near building entrances. Illuminated signage provides compliance without dominating visual hierarchy.

Luxury Hotels and Hospitality

Guest-facing corridors benefit from millwork-integrated solutions. Decorative enclosures matching guest room door frames or wall paneling systems make extinguishers virtually invisible to guests while remaining accessible to staff.

Retail Flagship Stores

Brand-conscious retail environments incorporate extinguisher furniture using brand colors and materials. Custom enclosures with logo application transform compliance obligations into brand touchpoints.

Heritage Buildings and Historic Renovations

Period architecture prohibits modern industrial equipment visibility. Furniture-grade enclosures using historically appropriate materials (wood, brass, traditional finishes) maintain architectural integrity while satisfying modern fire codes.

Glass Partition Offices

Contemporary offices with extensive glazing lack traditional wall-mounting locations. Designer floor stands with architectural finishes provide stable positioning without compromising open sightlines or requiring wall penetration.

Compliance Considerations for Concealment

Design-integrated solutions must not compromise regulatory requirements:

Custom Solution Development Process

Organizations requiring design-integrated fire safety furniture typically follow this process:

1. Site assessment: Identify required extinguisher locations based on regulations
2. Design intent documentation: Photograph interior finishes, collect material samples, document brand standards
3. Solution specification: Select enclosure type (full cabinet, partial cover, floor stand) based on visibility and aesthetic goals
4. Material coordination: Match finishes to existing interior elements
5. Prototype review: Evaluate sample unit or detailed renderings before full production
6. Installation coordination: Integrate with construction schedule or facility maintenance windows
7. Compliance verification: Confirm height, visibility and accessibility requirements satisfied

The Future of Fire Safety Integration

Emerging trends in fire safety furniture include:

• Smart enclosures: IoT-enabled cabinets monitoring equipment status and reporting tampering or removal events
• Modular systems: Pre-designed furniture lines accommodating various extinguisher sizes with consistent aesthetic
• Sustainable materials: Recycled content enclosures, FSC-certified woods and low-VOC finishes addressing environmental concerns
• Augmented reality markers: Discrete QR codes or AR markers providing digital wayfinding to extinguisher locations

Conclusion: Implementing Proper Fire Extinguisher Positioning

What is the proper position of a fire extinguisher? The answer combines regulatory requirements with practical accessibility and, increasingly, design integration. Effective positioning requires understanding multiple factors working together.

Key Requirements Summary

Implementation Checklist

Use this checklist when evaluating existing installations or planning new deployments:

Common Positioning Mistakes to Avoid

• Hidden locations: Positioning behind doors, in corners with limited sight lines, or in areas visible from only one direction
• Obstructed access: Allowing furniture, equipment or storage to accumulate in front of extinguishers
• Incorrect height: Mounting too high (difficult removal) or too low (reduced visibility)
• Travel distance errors: Measuring straight-line distances instead of actual walking routes
• Missing signage: Failing to display required F001 pictograms
• Wrong extinguisher class: Installing Class A units in areas requiring Class K (kitchens) or Class C (electrical rooms)
• Inadequate mounting: Using insufficient anchors or brackets not rated for extinguisher weight
• Weather exposure: Outdoor placement without proper weather protection
