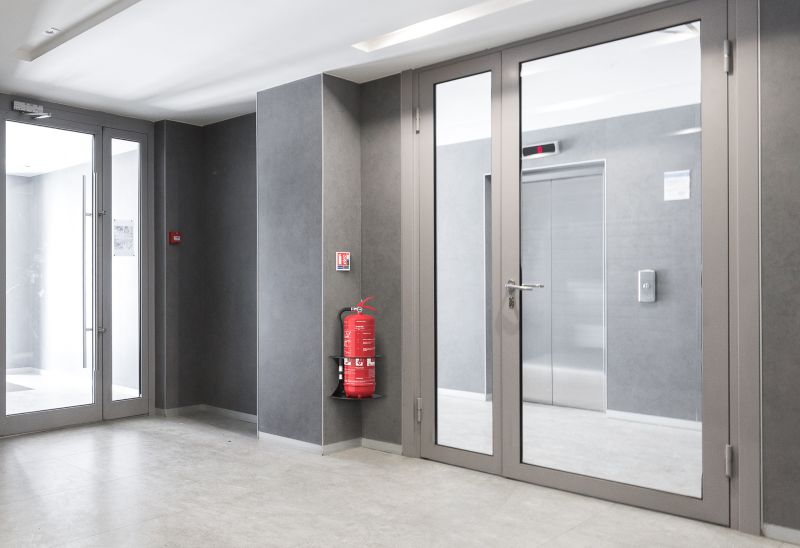

Fire Extinguisher Stand for Wall: Best Mounting Solutions

Why Wall-Mounting Extinguishers Makes Sense

Wall-mounted installations represent the most common approach to fire extinguisher stand for wall deployment across commercial residential and industrial environments.

Space Optimization Benefits

Vertical mounting eliminates floor-level footprints freeing valuable space in corridors narrow hallways and compact offices. This advantage becomes critical in:

• High-traffic evacuation routes where floor obstacles create tripping hazards
• Small office spaces maximizing usable square footage
• Retail environments preventing customer navigation obstacles
• Industrial facilities maintaining clear pathways for material handling equipment

The wall mounted extinguisher bracket solutions approach maintains accessibility while preserving movement corridors.

Enhanced Visibility

Wall positioning at eye level improves extinguisher visibility compared to floor-standing alternatives. Mounting heights between 0.80m and 1.20m place equipment within natural sight lines for standing adults.

Red signage and photoluminescent indicators at this height catch attention more effectively than floor-level installations that may be obscured by furniture desks or passing foot traffic.

Protection from Ground-Level Hazards

Elevating extinguishers above floor level prevents exposure to:

• Cleaning operations using wet mops or floor scrubbers
• Wheeled equipment including trolleys pallet jacks and carts
• Flood events from plumbing failures or weather infiltration
• Pest activity in ground-level areas

The vertical fire safety holder installation strategy protects equipment from environmental degradation extending service life and reducing maintenance costs.

Regulatory Preference

Fire safety authorities recommend wall mounting in evacuation routes and near exits. The OSHA standards for portable fire extinguishers emphasize positioning equipment where occupants will encounter it during emergency egress.

Wall-mounted configurations fulfill this requirement by placing extinguishers at exit doorways stairwell entrances and corridor intersections where evacuating personnel naturally pass.

Standard Metal Wall Brackets

Steel wall brackets represent the most economical and widely deployed fire extinguisher stand for wall solution across all building types.

Construction and Design

Standard metal brackets feature:

• U-shaped support cradle matching extinguisher cylinder diameter
• Horizontal base plate with pre-drilled mounting holes
• Optional upper retention strap securing extinguisher neck
• Steel construction typically 2-3mm thickness
• Red powder-coated finish for visibility and corrosion resistance

The simple geometry allows universal compatibility with extinguisher sizes from compact 2kg CO2 units to standard 6L/6kg and 9L/9kg models.

Mounting Configurations

Basic hook bracket: Single-piece design where extinguisher hangs from upper rim. Installation requires only 2 fixing points making it the fastest mounting method. Suitable for lightweight extinguishers up to 6kg in low-vibration environments.

Cradle bracket: Two-point support system with lower cradle and upper retention. This secure mounting emergency equipment approach distributes weight across multiple contact points preventing stress concentration. Recommended for heavier 9kg extinguishers or high-traffic areas prone to contact.

Heavy-duty bracket: Reinforced construction with 4-6 mounting points for industrial environments or outdoor installations. Thicker gauge steel and additional bracing resist impact from equipment or environmental forces.

Installation Process

Standard metal bracket mounting follows straightforward procedures:

1. Position determination: Mark desired height typically 1.0-1.2m from floor to extinguisher handle
2. Level verification: Use spirit level ensuring horizontal alignment
3. Pilot hole drilling: Create holes matching wall substrate requirements
4. Anchor insertion: Install appropriate wall plugs or anchors
5. Bracket attachment: Secure bracket using supplied screws or bolts
6. Load testing: Apply downward pressure verifying secure attachment
7. Extinguisher placement: Hang or cradle extinguisher in bracket

Total installation time ranges from 5-10 minutes per unit for experienced installers.

Advantages and Limitations

Benefits of metal wall brackets:

• Extremely low cost typically €5-15 per bracket
• Universal availability from multiple suppliers
• Simple installation requiring basic tools
• Durable construction lasting 10-15 years
• Minimal maintenance requirements

Design limitations:

• Industrial appearance unsuitable for design-focused environments
• No extinguisher protection from impacts or tampering
• Fully exposed cylinder vulnerable to cosmetic damage
• No integrated signage requiring separate wall indicators
• Limited aesthetic customization beyond standard red

Metal brackets excel in utilitarian spaces like warehouses parking garages mechanical rooms and back-of-house areas where function supersedes form.

Specialized Bracket Variations

Semi-recessed brackets: Designed for installation between wall studs creating flush or near-flush mounting. This fire extinguisher stand for wall approach minimizes protrusion in narrow corridors reducing collision risk.

Adjustable brackets: Feature sliding or pivoting mechanisms accommodating different extinguisher diameters. Useful for facilities maintaining mixed extinguisher inventories from multiple manufacturers.

Quick-release brackets: Incorporate one-hand removal mechanisms accelerating extinguisher deployment during emergencies. Spring-loaded or magnetic retention enables rapid extraction without lifting or maneuvering.

Plastic Wall Mounting Brackets

Injection-molded plastic brackets provide lightweight economical wall mounted extinguisher bracket solutions for controlled indoor environments.

Material and Construction

Plastic wall brackets typically utilize:

• High-impact polystyrene or ABS for structural rigidity
• Reinforced mounting flanges preventing stress cracking around fixing points
• Molded color eliminating painting typically red or black
• Integrated mounting holes positioned for standard wall stud spacing

Weight ranges from 200-400g making them the lightest fire extinguisher stand for wall option available.

Performance Characteristics

Load capacity: Most plastic brackets safely support 6-9kg extinguishers when properly mounted to solid substrates. However weight ratings decline with temperature extremes or prolonged UV exposure.

Environmental limitations:

• Indoor use only avoiding outdoor weathering
• Temperature range typically 5°C to 35°C
• UV degradation near windows or under intense artificial lighting
• Chemical sensitivity to strong solvents or cleaning agents

Durability expectations: Plastic brackets provide 5-8 year service life in controlled conditions. High-traffic areas with frequent extinguisher removal and replacement accelerate wear particularly at retention points.

Cost-Benefit Analysis

Plastic brackets cost 30-50% less than metal alternatives typically €3-10 per unit. This economy suits:

• Large-scale installations requiring dozens of mounting points
• Temporary facilities or short-term leases
• Budget-conscious projects prioritizing functional compliance
• Low-visibility back-of-house locations

However replacement frequency often neutralizes initial savings. Facilities should calculate lifecycle costs including potential extinguisher damage from bracket failure and replacement labor expenses.

Installation Considerations

Plastic brackets require careful attention to substrate quality. Mounting to hollow walls or aged plaster demands toggle bolts or cavity anchors rated for dynamic loads exceeding extinguisher weight by 3-4x safety factor.

Over-tightening mounting screws cracks plastic flanges causing immediate or delayed failure. Installation specifications typically recommend torque limits or hand-tightening protocols preventing stress concentration.

Vehicle Mounting Straps and Clamps

Specialized mounting systems address unique challenges in vehicles vessels and mobile equipment where traditional fire extinguisher stand for wall brackets prove inadequate.

Strap-Based Retention Systems

Heavy-duty nylon or polyester straps with quick-release buckles secure extinguishers to vertical panels or bulkheads. This approach accommodates:

• Commercial vehicle cabs and cargo areas
• Marine vessels and recreational boats
• Construction equipment and machinery
• Industrial carts and mobile workstations

Strap systems absorb vibration and movement preventing bracket loosening common with rigid mounting in dynamic environments.

Clamp Mounting Solutions

U-bolt or band clamps attach extinguishers to roll bars pipes or structural members without requiring drilled holes. This vertical fire safety holder installation method preserves vehicle integrity while enabling repositioning as needs change.

Rubber or foam padding between clamp and extinguisher prevents finish damage from vibration while maintaining secure grip during vehicle operation.

Quick-Release Mechanisms

Vehicle-specific brackets incorporate one-hand release systems critical for emergency response while driving. Push-button or squeeze-lever mechanisms enable extraction without requiring two-handed operation or extended manipulation.

These systems meet transportation safety standards requiring secure retention during collision events while permitting rapid deployment when needed.

Plot: Hybrid Wall-Floor Solution

The Plot stand offers unique flexibility as both floor-standing and fire extinguisher stand for wall mounting solution through its dual-installation design.

Wall-Mounting Configuration

Technical specifications for wall installation:

• Height: 220mm creating compact vertical profile
• Width: 250mm diameter cylindrical footprint
• Depth: 250mm standoff from wall surface
• Weight: 4.5kg for ø120mm version 4kg for ø190mm model

Included wall brackets enable secure vertical mounting while maintaining the protective roll bar design that shields extinguisher cylinders from lateral impacts.

Installation Methodology

Wall mounting Plot stands follows these steps:

1. Bracket positioning: Attach supplied mounting brackets to wall at appropriate height
2. Substrate verification: Ensure wall construction supports combined weight of stand and extinguisher
3. Secure fastening: Use appropriate anchors for wall material
4. Stand placement: Hook Plot unit onto mounted brackets
5. Extinguisher insertion: Lift extinguisher vertically into cylindrical support

The system allows tool-free repositioning by simply lifting the stand off brackets and relocating to new wall positions as office layouts evolve.

Design Integration Advantages

Wall-mounted Plot installations deliver decorative wall fire protection through:

• Five standard colors: Options matching diverse interior palettes
• 180 custom RAL finishes: Exact color matching to corporate branding
• Minimalist profile: Unobtrusive 250mm protrusion from wall
• Optional totem signage: 8mm transparent acrylic indicator adding 567mm height

The cylindrical form creates visual softness compared to angular brackets particularly effective in modern offices with curved architectural elements or organic design themes.

Protection Features

The safety roll bar inherent to Plot design protects extinguisher bases from furniture impacts cart collisions and accidental contact. This secure mounting emergency equipment advantage extends to wall-mounted configurations where lateral protection remains critical despite elevated positioning.

Dual-Function Flexibility

Organizations uncertain about permanent wall mounting appreciate Plot's convertibility. Units initially wall-mounted can transition to floor-standing configurations using optional bases without purchasing new equipment.

This adaptability suits:

• Evolving office layouts with changing partition walls
• Leased spaces restricting permanent wall modifications
• Facilities testing different extinguisher positions for optimal visibility
• Multi-site organizations standardizing on single product across varied installation requirements

Diameter Options

Two internal diameter specifications accommodate different equipment:

ø120mm version: Fits standard 6L/6kg and CO2 2kg extinguishers common in office environments.

ø190mm version: Accommodates larger 9L/9kg units and CO2 5kg models required for server rooms or electrical equipment areas.

This sizing flexibility enables consistent aesthetic across facilities while matching extinguisher capacity to specific fire risks in different zones.

Tempo: Versatile Wall-Mounting System

The Tempo stand redefines fire extinguisher stand for wall versatility by offering wall-mounted floor-standing or hybrid configurations from a single product platform.

Wall-Mounted Installation Specifications

Dimensions for wall mounting:

• Height: 761mm vertical span
• Width: 290mm horizontal footprint
• Depth: 222mm protrusion from wall
• Weight: 9kg for steel components

The facade and support ring mount directly to vertical surfaces using included brackets eliminating need for base plates while maintaining full extinguisher accessibility.

Partial Coverage Aesthetic

Unlike full-enclosure cabinets Tempo provides partial screening while maintaining extinguisher visibility. This wall mounted extinguisher bracket solutions approach balances:

• Immediate recognition: Extinguisher remains visible confirming presence
• Design integration: Decorative facade softens industrial equipment appearance
• Quick access: Free-pull design requires no door opening or latch operation
• Protective function: Support ring shields cylinder from direct impacts

This balance suits environments requiring obvious fire safety equipment presence while elevating aesthetic standards beyond basic brackets.

Tri-Color Customization

Tempo enables independent color specification for three components creating monochromatic coordinated or contrasting schemes:

Steel facade options: Select from 16 fine texture finishes or 5 satin colors for the primary vertical panel visible from approach angles.

Support ring finishes: Choose matching or accent colors from the same 21-color palette for the cylindrical extinguisher holder.

Base alternatives: Wall-mounted configurations eliminate bases but floor-standing versions offer 21 steel colors or 4 transparent acrylic finishes.

This decorative wall fire protection flexibility enables precise matching to architectural color schemes corporate branding or interior design palettes.

Installation Process

Wall mounting stand Tempo systems involves:

1. Height determination: Position facade placing extinguisher handle at 0.80-1.20m per regulations
2. Bracket attachment: Secure mounting brackets to wall using appropriate anchors
3. Facade mounting: Attach steel facade panel to brackets
4. Support ring installation: Connect cylindrical holder to facade
5. Extinguisher placement: Slide extinguisher horizontally into support ring
6. Signage application: Add wall-mounted or totem indicators as required

Accessory Integration

Wall-mounted Tempo installations accommodate functional additions:

• CO2 2kg maintaining plate: Adapter securing smaller cylinders within support ring
• Pharmacy kit holder: Adjacent first-aid supply bracket creating comprehensive safety station
• Wall signage panels: Photoluminescent or red indicators meeting visibility requirements

These accessories transform single-purpose extinguisher holders into multi-function emergency response points consolidating safety equipment in strategic locations.

Hybrid Installation Strategy

Tempo uniquely supports wall-floor hybrid positioning where facade mounts to wall while optional base provides additional stability. This configuration suits:

• Hollow walls with limited load capacity requiring floor weight distribution
• High-traffic areas benefiting from physical base barrier preventing close approach
• Tall installations where wall-only mounting creates excessive cantilever stress

The vertical fire safety holder installation flexibility accommodates diverse architectural challenges without requiring different product specifications.

Material Quality

Steel facade construction with epoxy powder coating provides:

• Impact resistance withstanding shoulder bags briefcases and casual contact
• Chemical resistance to office cleaning products
• UV stability preventing fading near windows
• Corrosion protection ensuring decades of service

The 20/10th facade thickness balances structural rigidity with reasonable weight maintaining manageable installation demands while delivering commercial-grade durability.

Wall Installation Requirements and Best Practices

Proper fire extinguisher stand for wall installation ensures regulatory compliance equipment protection and long-term reliability.

Load Capacity Verification

Wall substrates must support combined weight of mounting hardware stand components and extinguisher with minimum 4x safety factor. This requirement accounts for:

• Static load: Continuous weight of installed equipment
• Dynamic load: Forces during emergency removal
• Impact load: Accidental collisions from people or objects
• Age degradation: Reduced substrate strength over time

Standard 9kg extinguisher with bracket requires wall capacity exceeding 36kg at mounting points.

Anchor Selection by Wall Type

Concrete or masonry walls:

• Expansion anchors 8-10mm diameter
• Minimum 40mm embedment depth
• Rated for 400-500kg pull-out force per anchor

Timber stud walls:

• Wood screws 6-8mm diameter directly into studs
• Minimum 35mm penetration into solid timber
• Never rely solely on plasterboard without stud backing

Hollow walls or partitions:

• Toggle bolts or cavity anchors rated for dynamic loads
• Distribute mounting points across multiple studs when possible
• Consider floor-standing alternatives if wall capacity inadequate

Glass or glazed walls:

• Specialized glass anchors or clamps required
• Professional installation mandatory preventing fracture risk
• Alternative: adjacent solid wall mounting or floor stands

The NFPA 10 standard emphasizes secure mounting preventing dislodgement during building vibration or emergency removal forces.

Positioning Relative to Building Features

Clearance requirements:

• Minimum 50mm clearance from door swing arc preventing collision during opening
• 150mm minimum from corners allowing adequate approach space
• 200mm minimum from floor level preventing kick damage
• 300mm clearance from ceiling or overhead obstructions

Visibility optimization:

• Position away from visual clutter or busy wall graphics
• Avoid placement behind doors or movable partitions
• Ensure sight lines from multiple approach angles
• Install at intersections visible from perpendicular corridors

Multi-Extinguisher Spacing

When installing multiple fire extinguisher stand for wall units along corridors or perimeters maintain:

• Maximum 25-30m travel distance between units per fire codes
• Minimum 2m spacing between adjacent extinguishers preventing confusion
• Consistent height across all installations enabling intuitive location
• Alternating wall sides in long corridors distributing protection

Signage Integration

Wall-mounted extinguishers require visible indicators meeting regulatory standards:

• Overhead signage: Suspended or ceiling-mounted signs visible above crowd height
• Wall-mounted placards: Positioned above or adjacent to extinguisher indicating presence
• Photoluminescent materials: Glow-in-dark indicators maintaining visibility during power failures
• Directional arrows: Guiding occupants from distant locations to nearest extinguisher

Integrated signage systems like Plot totem options or Tempo facade markings streamline compliance while maintaining aesthetic coherence.

Cable and Service Avoidance

Pre-installation surveys must identify concealed services preventing dangerous penetrations:

• Electrical wiring and conduits behind walls
• Plumbing pipes and drainage lines
• HVAC ductwork and refrigerant lines
• Data and communication cabling

Electronic stud finders with wire detection capabilities or professional service location surveys prevent costly and dangerous errors during anchor drilling.

Surface Compatibility and Mounting Solutions

Different wall materials demand specific approaches to secure mounting emergency equipment ensuring reliable long-term performance.

Painted Plasterboard

Standard office partitions present challenges for fire extinguisher stand for wall installations due to limited load capacity.

Proper mounting technique:

1. Locate timber or metal studs using electronic detector
2. Mark stud centers ensuring mounting points align
3. Drill pilot holes into stud centers not hollow cavity
4. Use appropriate wood or metal stud screws
5. Verify secure attachment before loading with extinguisher

Never rely on plasterboard anchors alone for extinguisher mounting. These fasteners suit picture frames and light fixtures but lack capacity for safety equipment.

Brick and Masonry

Traditional masonry walls provide excellent mounting substrates for all bracket types:

• Brick walls: Drill into brick bodies not mortar joints for maximum holding power
• Concrete block: Target solid portions avoiding hollow cores when possible
• Concrete walls: Use hammer drill with masonry bits and expansion anchors

Masonry substrates easily accommodate heavy-duty brackets premium stands like Plot and Tempo and multiple extinguisher cabinet systems without special reinforcement.

Tile and Stone Surfaces

Decorative wall finishes require careful drilling preventing cracking:

1. Apply masking tape over drill location preventing bit skating
2. Use carbide or diamond-tipped drill bits at low speed
3. Begin with small pilot hole expanding gradually to final diameter
4. Avoid hammer-drill mode until past tile reaching substrate
5. Install appropriate anchors for substrate material behind tile

Professional installers often use diamond core bits for large anchors in expensive tile preventing costly damage during installation.

Metal Stud Partitions

Modern office buildings frequently employ metal stud framing requiring specific fastener selection:

• Self-tapping metal screws with sharp threads
• Minimum 12mm thread engagement into stud walls
• Pre-drilling recommended for thick-gauge steel studs
• Multiple mounting points distributing load across several studs

Metal stud walls provide adequate capacity for standard extinguishers when properly fastened but may require reinforcement plates for heavy cabinet systems.

Glass Partition Walls

Contemporary offices with extensive glazing present unique challenges:

Direct glass mounting: Specialized clamps or adhesive systems rated for glass attachment. Professional installation mandatory. Limited to lightweight brackets and small extinguishers.

Frame mounting: Attach brackets to aluminum or steel frames supporting glass panels. Verify frame capacity and use fasteners appropriate for frame material.

Alternative positioning: Consider floor-standing solutions like Plot or Tempo avoiding glass mounting entirely. This wall mounted extinguisher bracket solutions alternative eliminates glass penetration while maintaining accessibility.

Historic or Protected Walls

Heritage buildings or architecturally significant spaces may restrict permanent modifications:

• Reversible mounting: Use existing fixings or minimize new penetrations
• Floor-standing alternatives: Ballasted bases eliminating wall attachment
• Conservation consultation: Engage heritage specialists for approved methods
• Temporary solutions: Consider removable systems for short-term compliance

Tempo and Plot hybrid configurations offer flexibility accommodating installation constraints in sensitive environments.

Height Positioning and Accessibility Standards

Regulatory authorities specify precise positioning requirements for fire extinguisher stand for wall installations ensuring universal accessibility.

Standard Height Range

Fire safety codes mandate extinguisher handles between 0.80m and 1.20m above finished floor level. This range accommodates:

• Average adult standing reach without stretching
• Wheelchair users accessing equipment from seated position
• Children or shorter individuals in public spaces
• Emergency responders wearing protective equipment

The ADA accessibility standards emphasize positioning emergency equipment within reach of individuals with mobility limitations.

Optimal Positioning Guidelines

1.0-1.1m height range: Most common installation height balancing:

• Comfortable reach for majority of population
• Eye-level visibility for standing adults
• Accessible from wheelchair or seated position
• Sufficient clearance above floor preventing kick damage

This height creates visual consistency when using multiple vertical fire safety holder installation types across facilities.

Specialized Height Considerations

Areas with children: Schools daycare facilities and family entertainment venues may install extinguishers at lower heights within 0.80-0.90m range improving accessibility for younger users while maintaining adult access.

Industrial environments: Facilities with PPE requirements or heavy machinery may position extinguishers at upper range 1.10-1.20m improving visibility above equipment and accommodating users wearing steel-toe boots or protective gear adding height.

Public assembly spaces: Theatres convention centers and stadiums often install at 1.0m standard enabling seated crowd visibility while maintaining standing access.

Protrusion and Clearance Requirements

Wall-mounted equipment must not create excessive protrusion hazards:

• Maximum 100mm protrusion in accessible routes per ADA
• Greater protrusions require recess mounting or protective barriers
• Minimum 600mm clear approach space preventing access obstruction

Slim-profile brackets minimize protrusion while designs like Plot 250mm depth or Tempo 222mm depth require corridor width verification ensuring adequate clearance remains for accessibility compliance.

Multi-Level Building Consistency

Large facilities benefit from standardized installation heights across all floors:

• Simplifies training and emergency response procedures
• Creates visual consistency aiding intuitive location
• Streamlines maintenance and inspection protocols
• Facilitates equipment replacement and upgrades

Specification documents should mandate precise heights ensuring contractors achieve consistency across multiple work crews or installation phases.

Comparing Wall-Mounting Solutions

Different fire extinguisher stand for wall options suit specific applications based on performance aesthetics and budget considerations.

Comprehensive Comparison Matrix

Application-Specific Recommendations

Office reception and client-facing areas:

• First choice: Tempo wall-mounted with custom colors matching corporate branding
• Alternative: Plot with totem signage for minimalist aesthetic
• Avoid: Standard metal or plastic brackets clashing with professional design

Open-plan workspaces:

• First choice: Tempo wall-mounted preserving floor space
• Alternative: Metal brackets on structural columns if design flexibility not critical
• Consider: Partial coverage maintaining visibility while improving aesthetics

Corridors and evacuation routes:

• First choice: Metal brackets for cost-effective multi-unit deployments
• Alternative: Plot wall-mounted at intersections requiring impact protection
• Priority: Minimize protrusion in narrow passages

Warehouse and industrial spaces:

• First choice: Heavy-duty metal brackets withstanding rough environment
• Alternative: Plot for areas with forklift traffic providing cylinder protection
• Avoid: Plastic brackets inadequate for impact exposure

Retail and showroom environments:

• First choice: Tempo with color matching to store design palette
• Alternative: Plot minimalist profile complementing product displays
• Priority: Aesthetic integration without compromising visibility

Healthcare facilities:

• First choice: Metal or Plot for hygiene and easy cleaning
• Alternative: Tempo in public areas matching facility color schemes
• Requirement: Materials resistant to medical-grade cleaning chemicals

Conclusion: Selecting Your Optimal Wall-Mounting Solution

The ideal fire extinguisher stand for wall installation balances regulatory compliance spatial constraints aesthetic requirements and budget realities. Standard metal brackets serve utilitarian spaces effectively while plastic options suit temporary or budget-limited projects. Plot delivers minimalist protection for executive environments. Tempo provides customizable partial coverage for public-facing areas requiring design sophistication.

Professional specification demands analyzing wall substrate capacity traffic patterns interior design standards and long-term maintenance considerations. The wall mounted extinguisher bracket solutions spectrum accommodates diverse requirements from basic functional compliance to premium architectural integration.

Modern commercial spaces deserve fire safety solutions matching their operational standards and design aspirations. Strategic investment in appropriate vertical fire safety holder installation systems protects occupants and property while demonstrating organizational commitment to comprehensive safety culture.
