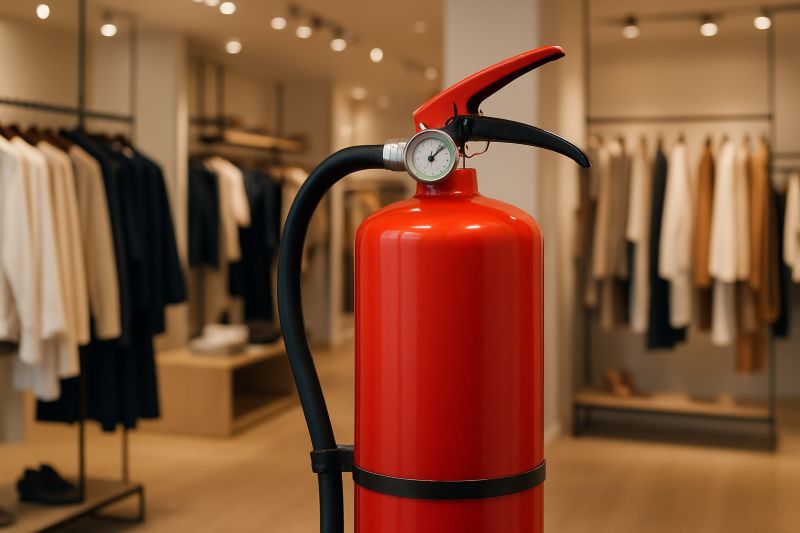

Rule for a Fire Extinguisher in a Shop

Why Fire Extinguisher Rules Matter in Retail Spaces

Fire safety in commercial environments protects customers, employees and property. Shops present unique challenges due to high foot traffic, diverse merchandise and varied layouts.

The rule for a fire extinguisher in a shop exists to ensure:

• Immediate accessibility during emergencies
• Clear visibility for quick location
• Protection against accidental damage or vandalism
• Compliance with insurance requirements

According to the Arbeitsschutzausschuss (ASA), fire extinguishers must be clearly visible, easily accessible, and protected against damage and weather conditions.

Retail spaces face specific risks:

• Textile shops: high flammability materials
• Electronics stores: electrical fire hazards
• Food shops: cooking equipment risks
• General merchandise: packaging materials

Essential European Regulations for Shop Fire Extinguishers

Visibility and Accessibility Standards

European fire safety standards mandate that every rule for a fire extinguisher in a shop must prioritize two elements: visibility and accessibility.

Core requirements across EU countries:

• Extinguishers must be clearly visible at all times
• Installation in evacuation routes is mandatory
• Preferred locations include exit areas and corridor intersections
• Access must not be obstructed by merchandise or displays

Fire extinguisher placement regulations retail

The ASA guidelines specify that fire extinguishers should be:

• Positioned in escape routes
• Located near exits to the outside
• Installed at stairwell entrances
• Placed at route crossings and corridor junctions

Distance requirements vary by country but typically mandate:

• Maximum 25-30 meters travel distance to nearest extinguisher
• One extinguisher per 200-400 m² of floor space
• Additional units near high-risk areas (kitchens, electrical rooms)

Protection Requirements

Regulations explicitly allow dressing and protecting extinguishers with fire furniture (ASA guidelines). This authorization covers:

• Protective fire extinguisher covers
• Cabinets
• Collision protection devices
• Weatherproofing solutions

This is particularly important in shops where extinguishers face risks from shopping carts, customer traffic, or outdoor exposure.

Where to Install Fire Extinguishers in Your Shop

Strategic Placement Points

Understanding shop fire safety equipment requirements helps optimize protection:

Priority locations:

1. Main entrance/exit areas - First line of defense for evacuation routes
2. Checkout zones - High-traffic areas with electrical equipment
3. Storage rooms - Concentrated merchandise and packaging materials
4. Staff areas - Kitchens, break rooms, offices
5. Corridor intersections - Central access points

Avoiding Common Placement Errors

The rule for a fire extinguisher in a shop is often violated by:

• Hiding extinguishers behind displays
• Placing them in locked storage rooms
• Installing them too high or too low
• Blocking access with merchandise

Height and Accessibility Requirements

Standard Height Range

According to ASA standards, the ideal height for fire extinguisher handles is 0.80m to 1.20m from the floor.

This range ensures:

• Easy removal from holder
• Accessibility for most adults
• Compliance with disability access requirements
• Ergonomic handling during stress

Wall-Mounted vs Floor-Standing Options

Wall-mounted installations:

• Save floor space in crowded shops
• Reduce collision risks
• Maintain clear evacuation paths
• Require sturdy wall anchoring

Floor-standing solutions:

• Ideal for glass surfaces or weak walls
• Provide mobility options
• Work well in open retail spaces
• May include ballasted bases for stability

The extinguisher cabinet standards commercial spaces allow both installation methods, provided accessibility remains optimal.

Choosing the Right Fire Extinguisher Type for Retail

Standard Shop Requirements

Most shops require multi-purpose extinguishers capable of handling:

• Class A fires (paper, wood, textiles, packaging)
• Class B fires (flammable liquids, oils)
• Electrical fires (cash registers, lighting, appliances)

Recommended Types

The rule for a fire extinguisher in a shop typically mandates at least one 6L/6kg unit per 200m² of retail space.

Special Considerations

Kitchen areas (cafés, food shops) require:

• Specialized cooking oil extinguishers (Class F)
• Positioned within 3 meters of cooking equipment
• Additional units separate from general retail extinguishers

How to Protect Fire Extinguishers Without Breaking Rules

The Vandalism Challenge

Retail environments expose extinguishers to:

• Deliberate damage (vandalism, tampering)
• Accidental impacts (shopping carts, customer collisions)
• Environmental factors (humidity, temperature changes)

Protecting fire equipment from vandalism becomes essential, especially in:

• High-traffic shopping malls
• Street-level boutiques
• Underground parking areas
• 24/7 accessible spaces

Authorized Protection Methods

The ASA guidelines explicitly state that fire extinguishers may be protected by:

• Protective covers - Partial coverage maintaining visibility
• Fire Extinguisher Cabinets - Full enclosure with easy opening systems
• Collision protection - Roll bars or stands
• Not fully enclosed structures - Allowing air circulation

Benefits of Fire Furniture

Installing fire extinguisher cabinets or covers provides:

1. Regulatory compliance - Accepted by safety commissions
2. Cost savings - Prevents damage and replacement costs
3. Design integration - Matches interior décor
4. Enhanced visibility - Photoluminescent signage options
5. Tamper evidence - Security seal drillings

The rule for a fire extinguisher in a shop explicitly allows these solutions, making them ideal for retail environments.

Design Solutions: Cabinets and Covers That Comply

Modern fire furniture combines regulatory compliance with aesthetic integration. Our range offers solutions specifically designed for commercial spaces.

Fire Extinguisher Cabinets

Cabinets provide complete protection while maintaining compliance.

Alto Fire Exinguisher Cabinet Range

Alto Single:

• For 1 extinguisher (6L/6kg or 9L/9kg)
• Dimensions: H700mm × W320mm × D220mm
• Wall-mounted or floor-standing with ballasted base
• "Pivot linkage" opening system (pull right side)
• Available in 5 standard colors + 180 RAL options
• Photoluminescent or red signage
• Optional totem signage for enhanced visibility

Alto High Capacity:

• For CO2 5kg extinguishers
• Dimensions: H801mm × W443mm × D267mm
• Same features as Alto Single
• Larger interior volume

Alto Double:

• For 2 extinguishers (6L/6kg or 9L/9kg + CO2 2kg)
• Dimensions: H700mm × W435mm × D245mm
• Ideal for shops requiring multiple extinguisher types
• Can be installed in corners

Key compliance features:

• Security seal drillings for tamper verification
• Mounting holes for permanent floor installation
• Steel construction (20/10th cabinet, 60/10th base)
• Epoxy powder painting for durability

Harmony Customizable Fire Extinguisher Cabinet

The most customizable option for design-conscious retailers:

• 400+ door finishes available
• 16 standard cabinet colors
• 100+ standard finishes (wood, stone, metallic, mirror effects)
• Custom logo or decoration printing on door
• Dimensions: H720mm × W290mm × D210mm
• "Pull-and-pull" magnetic opening system
• Three installation modes: wall, floor with base, or glued skates

Perfect for luxury boutiques, museums, showrooms where aesthetics matter.

Soprano Fire Extinguisher Cabinet

Mono or bi-color design with maximum interior volume:

• Dimensions: H700mm × W320mm × D220mm
• "Lift and place" opening system
• Nested cover design
• Optional rear masking plate for wall aesthetics
• Corner wall bracket available
• Maintains plate for CO2 2kg models

Ideal for shops with specific color schemes or branding requirements.

Fire Extinguisher Covers

Covers provide partial protection while maintaining maximum visibility.

Opus & Opus Extended Fire Extinguisher Cover

Choice of rot-proof, rust-proof materials:

• Painted aluminum (20/10th) - 5 standard colors
• Composite aluminum (30/10th) - 10 standard colors
• Two heights: H749mm (6L/6kg) or H849mm (9L/9kg)
• Wall-mounted with included support
• "Lift and place" opening
• Photoluminescent or red signage
• Weight: only 2.5-3kg

Perfect for glass walls, modern boutiques requiring lightweight solutions.

Cintro Aluminium Fire Extinguisher Cover

Elegant all-curves design with no protruding angles:

• Anodized aluminum (4 colors) or painted aluminum (5 colors)
• Dimensions: H730mm × W300mm × D210mm
• Minimalist design protects facility users from sharp edges
• Included mounting supports
• Adhesive signage (red or black)
• Ideal for high-traffic areas with collision risks

Excellent for children's stores, crowded shopping environments.

Cameo Fire Extinguisher Cover

Bi-material styling for subtle visibility:

• Aluminum cover + polycarbonate front
• Polycarbonate 350× stronger than glass
• Transparent or frosted front options
• Dimensions: H760mm × W280mm × D210mm
• Photoluminescent or red signage
• Modern aesthetic

Recommended for contemporary boutiques, design-forward spaces.

Reverso Decorative Fire Extinguisher Cover

Unique 180° rotatable design:

• Dimensions: H701mm × W330mm × D222mm
• Sloping top prevents object placement
• Reversible wall mounting (adapts to left/right access)
• 16 standard colors + custom RAL
• Steel construction (20/10th)
• Free swivel system for easy extraction

Perfect for unusual layouts, corner installations, modern establishments.

Stands for Fire Extinguishers

Stands offer floor-standing protection without wall mounting.

Tempo Fire Extinguisher Stand & Cover

Dual-function design:

• Wall-mounted AND/OR floor-standing
• Dimensions: H761mm × W290mm × D222mm
• Mono, bi, or tri-color options
• 21 standard colors (fine texture + satin finishes)
• Optional PMMA base (8mm) in 4 finishes
• "Free system" - pull sideways to extract
• Photoluminescent or red signage

Ideal for flexible shop layouts, temporary installations.

Plot Fire Extinguisher Stand

Minimalist protection with safety roll bar:

• Two diameters: ø120mm or ø190mm
• Dimensions: H220mm (787mm with totem)
• Protects extinguisher tank from collisions
• Wall and/or floor installation
• Optional PMMA totem signage (8mm)
• Weight: 4-5.5kg depending on diameter

Perfect for glass storefronts, minimalist boutiques.

Regional Variations in European Regulations

United Kingdom

• BS 5306 standards apply
• Risk assessment mandatory for all retail premises
• Travel distance: maximum 30 meters to extinguisher
• Signage must comply with BS ISO 7010

Germany

• ASR A2.2 regulations
• DIN EN 3 compliant extinguishers required
• Minimum 6 LE (Löscheinheiten) per floor
• Height requirements: 0.8-1.2m strictly enforced

Italy

• DM 10/03/1998 standards
• CPI (Certificato Prevenzione Incendi) required for shops over 400m²
• Extinguisher capacity calculated by fire load
• Professional installation certificate mandatory

Spain

• Real Decreto 513/2017
• Retail classification affects requirements
• Distance requirements based on shop category
• Annual maintenance certificate compulsory

Netherlands

• Arbobesluit Article 3.46
• Risk Inventory & Evaluation (RI&E) mandatory
• Extinguisher type must match specific risks
• Training requirements for staff

Important: Always verify local regulations with regional fire authorities. The rule for a fire extinguisher in a shop may include additional municipal requirements.

Conclusion

Implementing the correct rule for a fire extinguisher in a shop protects customers, employees and business assets while maintaining aesthetic standards.

Key takeaways:

• Fire extinguishers must be visible, accessible, and protected
• European regulations explicitly allow fire furniture solutions
• Design cabinets and covers provide compliance + aesthetics
• Proper protection prevents damage and reduces long-term costs
• Installation height of 0.80-1.20m remains standard across Europe
• Different shop types require adapted extinguisher selection
