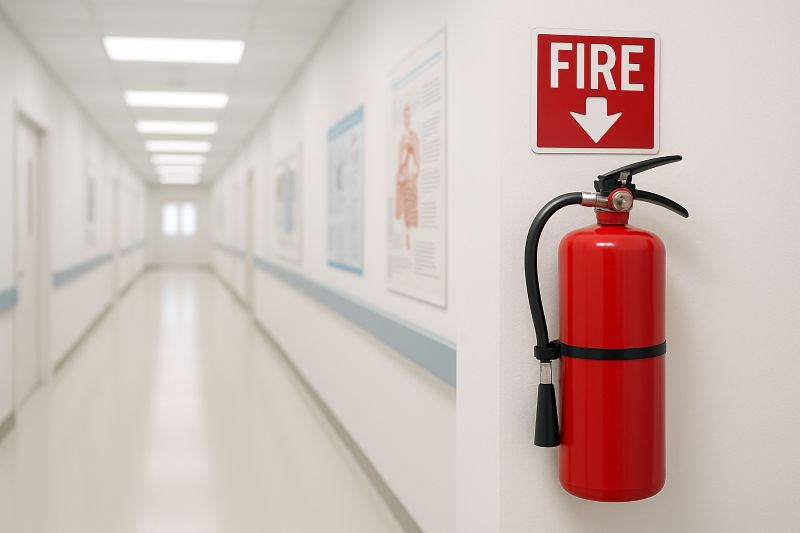

Fire Extinguisher Standards for HealthCare Facilities

Why Fire Safety Standards Matter in Healthcare Settings

Healthcare facilities present unique fire safety challenges. Patients with limited mobility cannot evacuate quickly. Medical equipment and oxygen supplies increase fire risks. Infection control protocols restrict visible safety equipment in sterile zones.

Fire extinguisher standards for healthcare facilities address these specific vulnerabilities. European regulations recognize that hospitals require more stringent protocols than standard commercial buildings (UK Health and Safety Executive).

Critical factors in healthcare fire safety:

• Patient vulnerability: Elderly residents, post-operative patients, and individuals with disabilities need extended evacuation times
• 24/7 operations: Round-the-clock staffing requires constant equipment accessibility
• Infection control: Visible fire equipment must not compromise hygiene standards
• Complex layouts: Multi-floor medical buildings with specialized departments demand strategic extinguisher placement

Hospital fire safety equipment regulations ensure protection without compromising patient care quality.

European Regulatory Framework for Medical Facilities

European countries follow harmonized standards with national variations. The foundation comes from EN 3 standards for portable fire extinguishers and ISO 7010 for safety signage (ISO 7010:2019).

Key European directives:

EN 3-7:2004+A1:2007 establishes characteristics, performance requirements, and test methods for fire extinguishers. This standard applies across EU member states including Germany, UK, Netherlands, Italy, and Spain.

ISO 7010 mandates standardized fire safety signage. Healthcare facilities must display clear, photoluminescent or red signage indicating extinguisher locations (Arbeitsschutzausschuss ASA).

Medical building fire protection compliance also incorporates:

• National building codes: Each country supplements EU directives with specific requirements
• Healthcare-specific regulations: Additional standards for hospitals, nursing homes, and medical centers
• Fire authority approvals: Local safety commissions verify installations

Specific Requirements for Healthcare Environments

Clinical environment extinguisher placement requirements exceed standard commercial specifications. Healthcare facilities must consider patient safety, staff access, and infection control simultaneously.

Extinguisher type requirements:

Water-based extinguishers (6L/9L) suit general hospital areas including waiting rooms, administrative offices, and non-clinical corridors. These address Class A fires involving paper, textiles, and wood (NFPA standards reference).

CO2 extinguishers (2kg/5kg) protect electrical equipment rooms, server areas, and medical device storage. Healthcare facilities house expensive diagnostic equipment requiring specialized fire suppression.

Foam extinguishers work in kitchens, cafeterias, and food service areas within hospital complexes.

Quantity calculations:

European standards recommend one extinguisher per 200 square meters of floor space. Fire extinguisher standards for healthcare facilities often exceed this minimum, placing additional units in:

• Patient room corridors every 15-20 meters
• Operating theater access zones
• Pharmaceutical storage areas
• Medical equipment rooms
• Emergency department entrances

Fire extinguisher standards for healthcare facilities mandate visible, easily accessible placement while protecting equipment from damage.

Placement and Accessibility Standards

Proper positioning ensures rapid emergency response. European regulations specify exact placement criteria for medical buildings.

Height requirements:

Extinguisher handles must sit between 0.80m and 1.20m from the floor. This range allows wheelchair users and standing staff equal access (Arbeitsschutzausschuss ASA).

In pediatric wards, facilities may install additional units at standard height with protective casings to prevent child tampering.

Location priorities:

1. Evacuation routes: Primary corridors and stairwell entrances require extinguishers at every exit point
2. High-risk zones: Kitchens, laundries, and maintenance areas need immediate access
3. Patient care areas: Nursing stations and treatment rooms should have visible units within 10 meters
4. Equipment rooms: IT infrastructure, medical device storage, and electrical panels demand dedicated protection

Visibility requirements:

Extinguishers must remain clearly visible even in darkened corridors. Photoluminescent signage glows during power failures, guiding staff to equipment locations (Fire Safety advice UK).

Hospital fire safety equipment regulations prohibit completely concealed installations. Even designer cabinets must allow instant visual identification.

Design Solutions for Clinical Spaces

Modern healthcare architecture demands aesthetic integration. Clinical environment extinguisher placement requirements no longer accept industrial-looking equipment disrupting carefully designed healing environments.

The design challenge:

Architects face conflicting demands:

• Regulatory visibility requirements
• Infection control smooth surfaces
• Interior design aesthetic coherence
• Patient psychological comfort

Healthcare fire prevention design solutions resolve these tensions through specialized fire furniture.

Fire Extinguisher Cabinet advantages in medical settings:

Complete enclosure protects extinguishers from:

• Accidental impacts from gurneys and wheelchairs
• Dust accumulation in sterile zones
• Tampering by confused or agitated patients
• Environmental exposure in humid climates

Design integration maintains architectural vision:

• Color matching to wall finishes
• Customizable RAL colors (180+ options available)
• Photoluminescent or red signage options
• Minimal visual intrusion

Cover and stand options:

Fire extinguisher covers suit areas requiring quick visual confirmation of extinguisher presence while providing physical protection. These work well in emergency departments where staff familiarity with layouts is high.

Fire extinguisher stands offer flexible placement in open areas like hospital lobbies, cafeterias, and conference centers within medical complexes.

Choosing Compliant Fire Furniture for Hospitals

Medical building fire protection compliance requires approved fire furniture that meets European standards while serving healthcare's unique needs.

Soprano Cabinet: The versatile solution

The Soprano fire extinguisher cabinet completely encloses 6L/6KG, 9L/9KG, or CO2 2KG extinguishers. This model suits patient corridors, administrative areas, and clinical support spaces.

Key features for healthcare:

• Steel construction (12/10th cabinet, 20/10th base) withstands repeated impacts
• Lift-and-place opening system enables one-handed operation during emergencies
• Optional ballasted base prevents tipping when secured to floors
• Five standard colors plus 180 RAL custom options match any interior palette
• Red or photoluminescent signage ensures visibility compliance

Installation flexibility allows wall mounting in narrow corridors or floor standing with glued skates in lobbies. The optional rear masking plate creates finished appearance against glass partitions.

Dimensions: Height 700mm (760mm on base), Width 320mm, Depth 220mm, Weight 7.5kg (14kg on base)

Reverso Cover: The space-efficient choice

The Reverso metal fire extinguisher cover provides 180° swivel access for tight spaces. This innovation suits nursing stations, equipment alcoves, and corners where traditional cabinets prove too bulky.

Healthcare advantages:

• Sloping top prevents placement of unauthorized objects maintaining hygiene protocols
• Reversible wall mounting adapts to left or right-handed access
• Steel construction (20/10th) with epoxy powder coating resists cleaning chemicals
• 16 standard colors integrate with existing décor schemes
• Included adhesive red vinyl signage meets visibility standards

The swivel mechanism allows extraction in either direction without removing the cover, crucial when medical emergencies demand immediate access.

Dimensions: Height 701mm, Width 330mm, Depth 222mm, Weight 11kg

Cintro Cover: The minimalist approach

The Cintro fire extinguisher cover offers curved, angle-free design preventing user injuries. This model particularly suits pediatric wards, psychiatric units, and areas with high patient traffic.

Safety-focused features:

• No protruding angles protect vulnerable patients
• Cut and rolled aluminum construction with anodized or epoxy powder coating finish
• Four standard anodized colors or five painted aluminum colors
• Wall-mounted with included support brackets
• Adhesive signage included for immediate visibility

The all-curved design eliminates sharp edges, critical in areas where medical equipment or patient falls might strike fire safety equipment.

Dimensions: Height 730mm, Width 300mm, Depth 210mm, Weight 2kg

DesignFeu Range Overview

The DesignFeu collection represents French expertise in fire furniture manufacturing since 2009. Each model undergoes rigorous production including design, cutting, bending, welding, grinding, degreasing, painting, deburring, sanding, and hand assembly.

This craftsmanship ensures durable products meeting strict European standards across Germany, UK, Netherlands, Italy, and Spain.

Installation Best Practices

Proper installation ensures regulatory compliance and long-term functionality. Fire extinguisher standards for healthcare facilities require secure mounting that withstands daily hospital operations.

Wall mounting considerations:

Structural support: Medical facilities often use lightweight partition walls. Fire furniture must anchor to load-bearing structures or use specialized hollow-wall fixings rated for equipment weight plus extinguisher mass.

Infection control zones: Sterile areas near operating theaters require smooth, cleanable surfaces. Cabinet installations should minimize ledges collecting dust while maintaining accessibility.

Vibration resistance: Hospitals experience constant vibration from elevators, medical equipment, and foot traffic. Mounting systems must prevent loosening over time.

Floor placement requirements:

Ballasted bases provide stability without drilling. These suit areas where floor penetration violates waterproofing or infrastructure protection.

High-traffic zones benefit from floor-mounted cabinets with optional bases creating visual prominence. The increased footprint reduces accidental impacts from passing gurneys.

Accessibility compliance: Floor units must not obstruct wheelchair passage. Minimum corridor widths must remain clear per local building codes (ADA accessibility guidelines).

Maintenance access:

Healthcare facilities require annual extinguisher inspections. Fire furniture should allow easy removal for servicing without tools. The security seal drillings included in models like Alto and Soprano enable tamper-evident verification between inspections.

Customization for healthcare:

Color psychology: Patient-facing areas benefit from calming colors. Administrative zones may use standard safety colors. Custom RAL matching allows seamless integration.

Signage selection: Red signage suits well-lit areas. Photoluminescent options work in corridors that may lose power during emergencies.

Multi-extinguisher configurations: Larger hospitals may specify Alto Double cabinets housing 6L/6KG + CO2 2KG combinations, providing Class A and electrical fire coverage in single locations.

Ensuring Long-Term Compliance

Hospital fire safety equipment regulations require ongoing maintenance. Fire furniture should support, not hinder, this process.

Annual inspection support:

European standards mandate yearly professional extinguisher servicing. Cabinet designs with lift-and-place or pivot linkage systems enable quick removal without disassembling mounting hardware.

Security seal drillings allow placement of tamper-evident tags. These indicate if unauthorized personnel accessed extinguishers between scheduled inspections.

Documentation requirements:

Medical facilities must maintain fire safety logs. Installation of designer fire furniture should include:

• Manufacturer specifications confirming regulatory compliance
• Installation date and mounting method
• Maintenance schedule aligned with national standards
• Staff training records for emergency equipment access

Regulatory updates:

European fire safety standards evolve. Healthcare facilities should work with suppliers offering compliant products that meet current directives across Germany, UK, Netherlands, Italy, and Spain (European Commission Construction Products).

The DesignFeu range undergoes rigorous manufacturing specifications ensuring durable products meeting strict European standards.

Making the Right Choice for Your Healthcare Facility

Medical building fire protection compliance balances safety, aesthetics, and functionality. Fire extinguisher standards for healthcare facilities provide the framework. Designer fire furniture delivers the solution.

Consider these factors when selecting fire equipment enclosures:

Space constraints: Tight corridors favor covers like Reverso. Open lobbies accommodate full cabinets like Soprano or Alto.

User demographics: Pediatric or psychiatric units need angle-free designs like Cintro. General hospitals prioritize quick staff access.

Interior design: Custom RAL colors, bi-material finishes, and slim profiles maintain architectural vision without compromising safety.

Budget considerations: Partial covers offer cost-effective protection. Full cabinets provide maximum extinguisher protection against vandalism and environmental damage.

Installation flexibility: Wall-mounted units suit renovation projects. Floor-standing options with ballasted bases work in spaces where drilling is prohibited.

Conclusion

Fire extinguisher standards for healthcare facilities across Europe establish clear requirements for visibility, accessibility, and protection. Modern healthcare architecture need not sacrifice aesthetic quality to achieve compliance.

Designer fire furniture like the Soprano cabinet, Reverso cover, and Cintro cover integrate clinical environment extinguisher placement requirements with sophisticated interior design. These solutions protect patients, satisfy regulatory authorities, and maintain the healing environments architects envision.

Healthcare facilities investing in compliant, well-designed fire safety equipment demonstrate commitment to patient safety while respecting the dignity of medical spaces.
